SR-32J III
type B
Diameter | 32 mm / 36 mm (option) |
---|---|
Headstock stroke | 320 mm / 80 mm (fixed headstock lathe) |
Machining possibilities |
Kinematics & tools

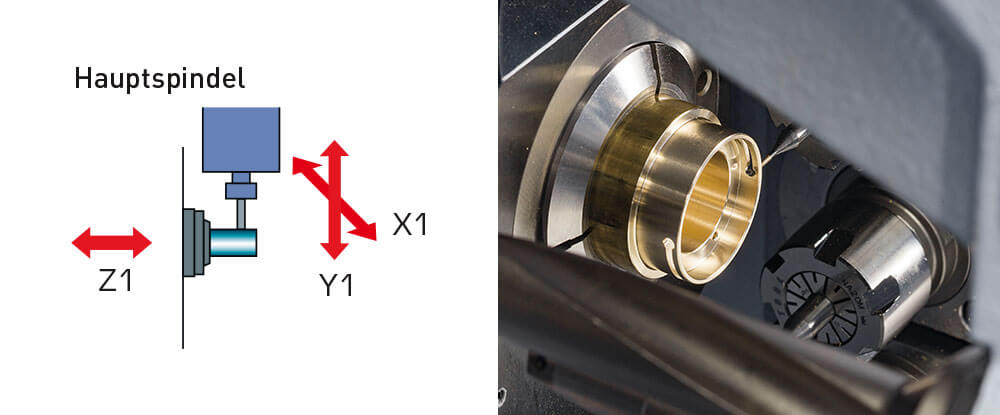

- 6-station tool holder on the tool post

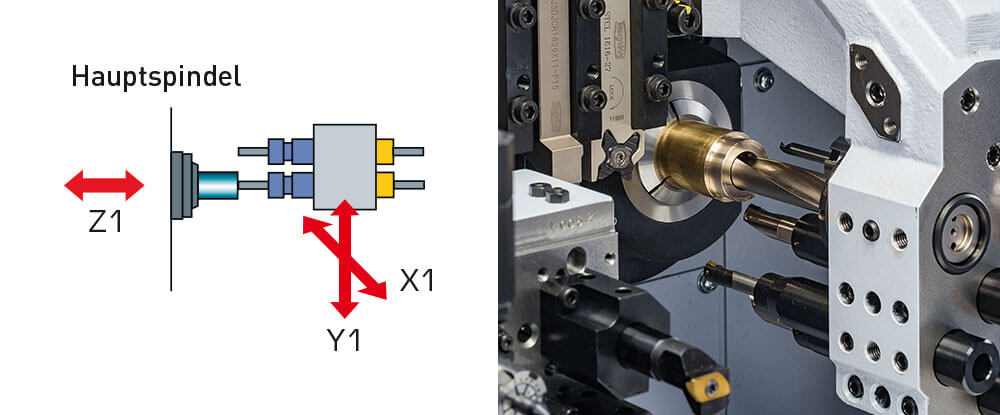

- 5-station drilling unit incl. sleeves (front and rear side)

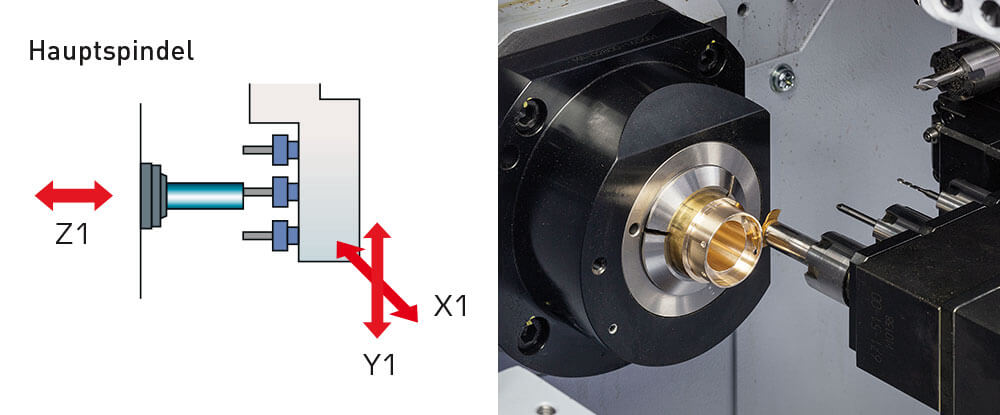

- 5 + α power-driven tools for cross machining on tool post

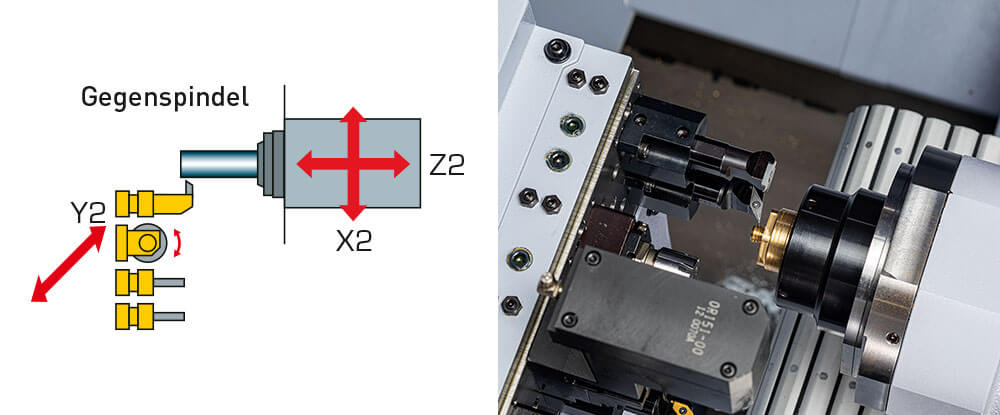

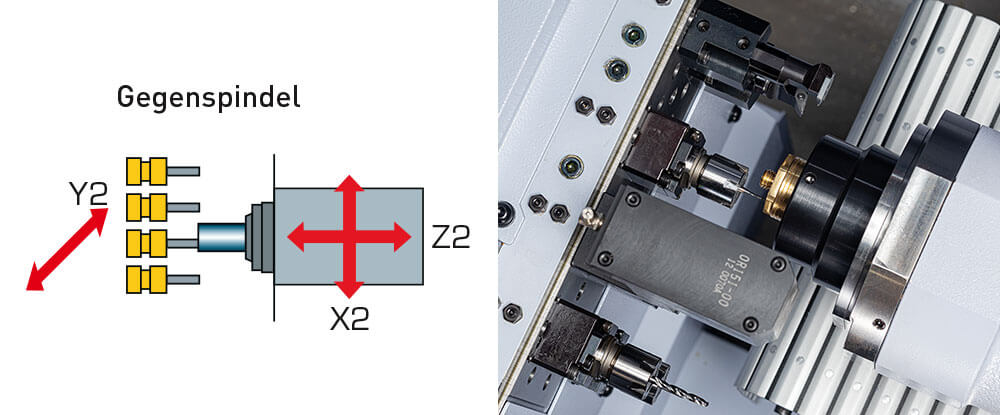

- 8 + α power-driven tools including sleeves for backworking
- 8 axes
SR
32J III
type B
THE CLASSIC
SR-32J III TYPE B
Our classic SR-32J II type B has been further improved. Among other things, the working area has been generously expanded, and the conversion
from a fixed headstock lathe to a sliding headstock lathe has been simplified for shorter set-up times. Thermal stability has also been significantly improved.
Advantages
- FANUC 32i-B control system with electronic handwheel
- C axis control as standard on main and sub spindle

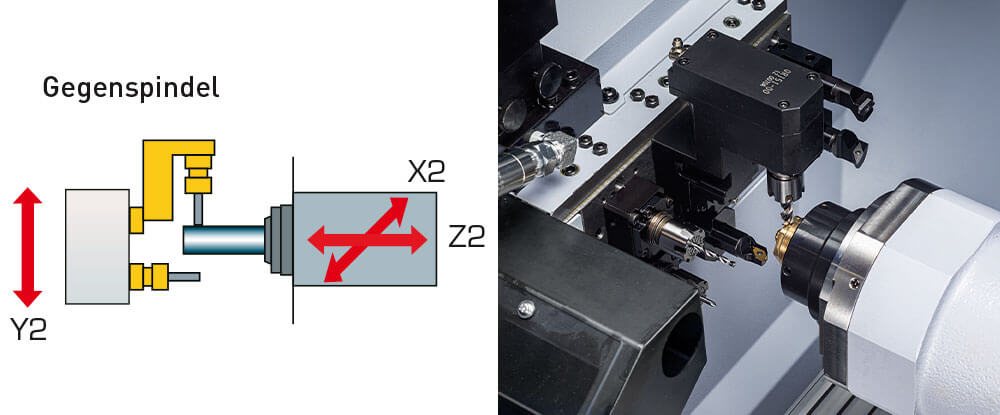

- fully independent backworking with 8 stations
- convertible from sliding headstock to fixed headstock lathe
- movable control panel
Specifications
General information | SR-32J III type B |
---|---|
Number of axes | 8 |
Max. rapid traverse speed | 35 m/min |
Weight | approx. 4,100 kg |
Coolant tank capacity | 275 litres |
Dimensions (L x W x H) | approx. 2,690 x 1,345 x 1,780 mm |
Main spindle side | SR-32J III type B |
---|---|
Number of axes | 4 |
Axes main spindle (headstock) | Z1 / C1 |
Axes tool post | X1 / Y1 |
Max. machining diameter | 32 mm / 36 mm (option) |
Max. headstock stroke (sliding/fixed headstock) | 320 mm / 80 mm |
Max. main spindle drive power | 11 kW |
Max. main spindle speed | 8,000 1/min |
Tools on the tool post | |
Turning tools | 6 tools (□ 16 mm) |
Drilling tools (5-spindle drilling unit) | 3 tools (ER16) / 2 tools (ER20) |
Cross machining tools | 3 tools (ER20) / 2 tools (ER16) |
Max. cross machining drive power | 3.0 kW |
Max. cross machining speed | 3 tools 6,000 rpm / 2 tools 8,000 rpm |
Sub spindle side | SR-32J III type B |
---|---|
Number of axes | 4 |
Axes sub spindle | X2 / Z2 / C2 |
Vertical axis for backworking | Y2 |
Max. chucking diameter | 32 mm / 36 mm (option) |
Max. sub spindle drive power | 5.5 kW |
Max. sub spindle speed | 8,000 rpm |
Backworking tools | |
Tool stations | 8 units (8 power-driven) |
Max. backworking speed | 6,000 rpm |
Standard scope of delivery
- FANUC 32i-B control system with electronic handwheel
- C axis control as standard on main and sub spindle
- synchronously driven guide bush unit
- convertible from sliding headstock to fixed headstock lathe
- 6-station tool holder on the tool post
- 5 + α power-driven tools for cross machining on tool post
- 5-station drilling unit incl. sleeves (front and rear side)
- 8 + α power-driven tools including sleeves for backworking
- broken cut-off tool detector
- parts ejection detector
- sub spindle for backworking
- sub spindle air blow unit
- pneumatic unit with maintenance unit
- sub spindle parts ejection detector
- parts conveyor to remove the parts
- oil lubrication system
- separate coolant tank with level monitoring and coolant flow detector
- bar feeder interface
- levelling pads and adjustment screws
- worklight
- toolbox with special tools
- metric input
- tool nose radius compensation
- constant cutting speed for main and sub spindle
- multiple canned cycles
- operating hours display
- parts counter
- automatic power supply cut-off function
- interfaces to input and read data
- program sequence controllable with electronic handwheel
- cylindrical interpolation
- polar coordinate interpolation
- polygon machining
- helical interpolation
- 3D coordinate conversion mode
- bar feeding: bar feeder
- chip disposal: chip conveyor
- long parts ejector
- beacon: acc. to customer requirements
- high pressure unit: 50 to 300 bar
- fire protection: small fire extinguishing system
- complete filtration coolant
- Tools in the internet at www.star-tools.eu
